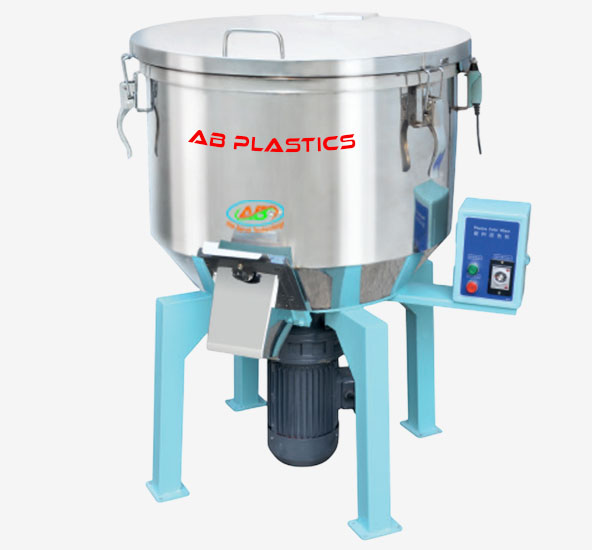

Vertical Color Mixer
Fast, Efficient, and Even Mixing for All Material Types
The Vertical Color Mixer features a double-layer stainless steel body and vertical design for quick, uniform mixing. Its direct motor drive ensures high efficiency, while the removable beater and mixing chamber make cleaning easy. The space-saving structure includes an automatic stop timer (0–30 minutes) and multiple safety protections, providing reliable and safe operation for industrial use.
Technical Specifications
| Model | Motor Power (kW) | Capacity (kg) | Power (V) | Mix Type | External Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| SST-50 | 1.5 | 50 | AC3 50/60HZ | Roll Type | 830×830×1120 | 130 |
| SST-100 | 3 | 100 | AC3 50/60HZ | Roll Type | 1000×1000×1280 | 190 |
| SSB-50 | 1.5 | 50 | AC3 50/60HZ | Vane Type | 830×830×1120 | 130 |
| SSB-100 | 3 | 100 | AC3 50/60HZ | Vane Type | 1000×1000×1280 | 190 |
| SSB-150 | 4 | 150 | AC3 50/60HZ | Vane Type | 1130×1130×1380 | 250 |
| SSB-200 | 5.5 | 200 | AC3 50/60HZ | Vane Type | 1250×1250×1580 | 320 |
| SSM-300 | 1.5 | 300 | AC3 50/60HZ | Screw Type | 1450×1140×2000 | 400 |
| SSM-500 | 2.2 | 500 | AC3 50/60HZ | Screw Type | 1450×1140×2500 | 500 |
| SSM-1000 | 4 | 1000 | AC3 50/60HZ | Screw Type | 1580×1380×3100 | 700 |
| SSM-1500 | 5.5 | 1500 | AC3 50/60HZ | Screw Type | 1750×1650×3100 | 1000 |
| SSM-2000 | 7.5 | 2000 | AC3 50/60HZ | Screw Type | 2000×2000×3500 | 1300 |
