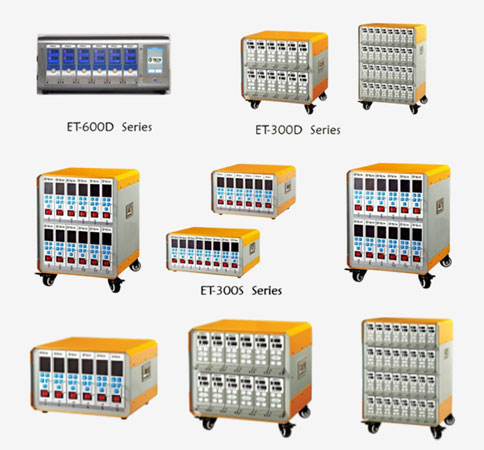

Precision Temperature Control for Consistent Injection Molding
The Hot Runner Temperature Controller provides precise, consistent, and energy-efficient control of the temperature for any hot runner system. Using sophisticated algorithms for tuning, sensor protection, and easy-to-use operation, this controller provides consistent melt flow, superior part quality, and operability of the mold. Available in modular and integrated designs to meet any need for molding application.
Time Sequence Controller Features
ET-300D Series
- Control Accuracy: ±1 ℃
- Temperature precision: 0.1°C
- Temperature Unit: ℃ or °F (menu-selectable)
- Temperature Range: 50 ~ 550 ℃
- Thermocouple Type: J or K
- Operation Mode: Auto, Manual and Standby Mode
- Process Sampling Rate: 25 ms
- Temperature Stability: ±0.5%
- Output: PID/PIDD
- Overload Protection: field-replaceable fuses
- Load: 15A, 100W~3600W
ET-600D Series
- Control Accuracy: ±1 ℃
- Temperature precision: 0.1°C
- Temperature Unit: ℃ or °F (menu-selectable)
- Temperature Range: 50 ~ 550 ℃
- Thermocouple Type: J or K
- Operation Mode: Auto, Manual and Standby Mode
- Process Sampling Rate: 25 ms
- Temperature Stability: ±0.5%
- Output: PID/PIDD
- Overload Protection: field-replaceable fuses
- Load: 15A, 100W~3600W

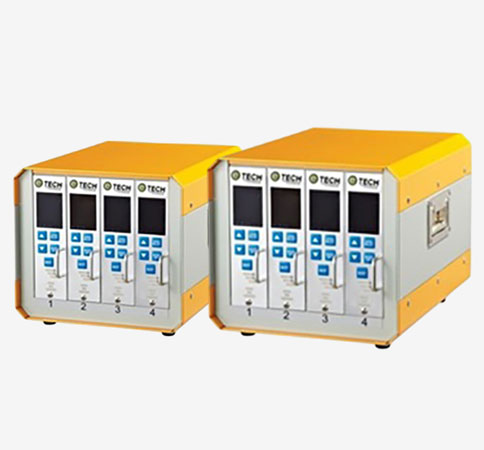

Precise Valve Gate Control for Superior Molded Part Quality
A Sequential Injection Timer allows precise, time-controlled opening and closing of each valve gate nozzle during the injection process. Suitable for both single and multi-cavity molds, it enhances part quality by eliminating weld lines, improving surface appearance, and reducing the required clamping force of the injection molding machine. This results in smoother flow, stronger molded parts, and greater overall process efficiency.
