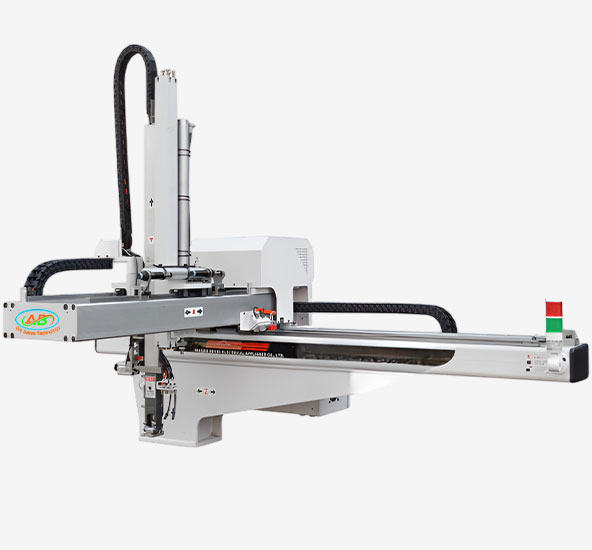

Heavy-Duty Traversing Servo Robot
Precision, Power, Performance for Large-Tonnage Injection Molding
The Heavy-Duty Traversing Servo Robot is engineered for demanding, large-tonnage injection molding operations. Equipped with high-performance AC servo motors on all axes, it delivers smooth, fast, and accurate part removal even under heavy loads.
Designed for machines ranging from 650 to 3000 tons, it ensures consistent performance, enhanced automation, and superior energy efficiency. The robot features strong structural rigidity, smooth traversing motion, and intelligent control — ideal for high-speed and heavy-load applications.

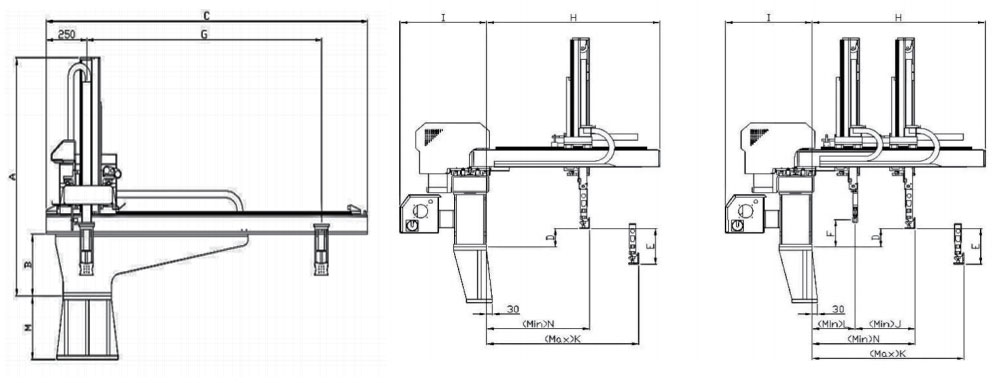

Technical Specifications
| Model | Arm Type | Applicable Tonnage | Drive System | Take-Out Stroke (mm) | Crosswise Stroke (mm) | Vertical Stroke (mm) | Max Payload (kg) | Repeat Accuracy (mm) | Air Pressure (kg/cm²) | Power Source |
|---|---|---|---|---|---|---|---|---|---|---|
| AB-HTR-1300 | Telescopic / Single Arm | 650 – 1000 tons | AC Servo Motor | 1300 | 2500 | 1600 | 10 | ±0.05 | 5 – 7 | AC 220V / 50Hz |
| AB-HTR-1800 | Telescopic / Double Arm | 1000 – 2000 tons | AC Servo Motor | 1800 | 3000 | 2000 | 15 | ±0.05 | 5 – 7 | AC 220V / 50Hz |
| AB-HTR-2500 | Telescopic / Double Arm | 2000 – 3000 tons | AC Servo Motor | 2500 | 3500 | 2200 | 20 | ±0.03 | 5 – 7 | AC 220V / 50Hz |
