Flexible and Efficient Material Loading for Multi-Machine Applications

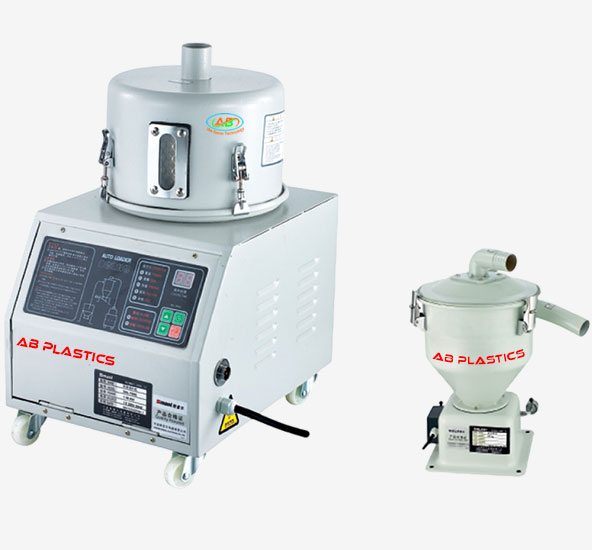

The Detachable Type Autoloader features a separate controller and material hopper design, making it easy to operate and maintain. Controlled by a microcomputer system, it ensures precise performance with real-time alarm alerts.
Equipped with motor overload protection and a high-voltage blower, it supports long-distance material conveying while ensuring reliable and safe operation. The stainless steel hopper prevents contamination, maintaining material purity throughout the process.
This model can be configured for one-to-several injection molding machines and offers flexibility with electric eye or vacuum hopper options as per customer requirements.
Technical Specifications
| Model | SAL-700G | SAL-700GE | SAL-800G1 | SAL-800G1E | SAL-800G2 | SAL-800G2E |
|---|---|---|---|---|---|---|
| Motor (kW) | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Conveying Capacity (kg/hr) | 300 | 300 | 350 | 350 | 400 | 400 |
| Conveying Height (m) | 4.5 | 4.5 | 4.5 | 4.5 | 5 | 5 |
| Conveying Tube Calibre (mm) | 38 | 38 | 38 | 38 | 38 | 38 |
| L (mm) | 285 | 285 | 380 | 380 | 380 | 380 |
| W (mm) | 400 | 400 | 430 | 430 | 430 | 430 |
| H (mm) | 500 | 500 | 670 | 670 | 670 | 670 |
| Weight (kg) | 29 | 30 | 51 | 52 | 53 | 54 |
