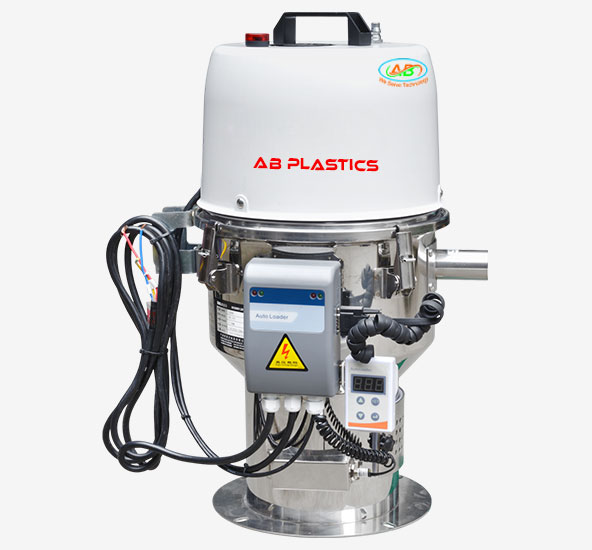

Single Phase Autoloader
Compact, Powerful, and Intelligent Material Loading Solution
The Single Phase Autoloader features a high-speed imported commutator motor that delivers strong suction in a compact design. It operates with microcomputer control for precise performance and reliability.
Equipped with an external air storage unit, it effectively cleans the dust filter, ensuring long service life. The system includes electronic motion detection, a low fault rate, and multi-indicator lamps for easy troubleshooting and smooth operation.
Technical Specifications
| Model | SAL-300C | SAL-360 | SAL-360E | SAL-400 |
|---|---|---|---|---|
| Motor (kW) | 1:1 | 1:1 | 1.1 | 0.75 |
| Conveying Capacity (kg/hr) | 250 | 300 | 300 | 350 |
| Conveying Height (m) | 4.5 | 4.5 | 4.5 | 4.5 |
| Material Hopper Volume (L) | 6 | 12 | 12 | 12 |
| Conveying Tube Calibre (mm) | 38 | 38 | 38 | 38 |
| L (mm) | 360 | 420 | 420 | 560 |
| W (mm) | 350 | 370 | 370 | 360 |
| H (mm) | 600 | 610 | 730 | 400 |
| Weight (kg) | 18 | 16 | 18 | 29 |
