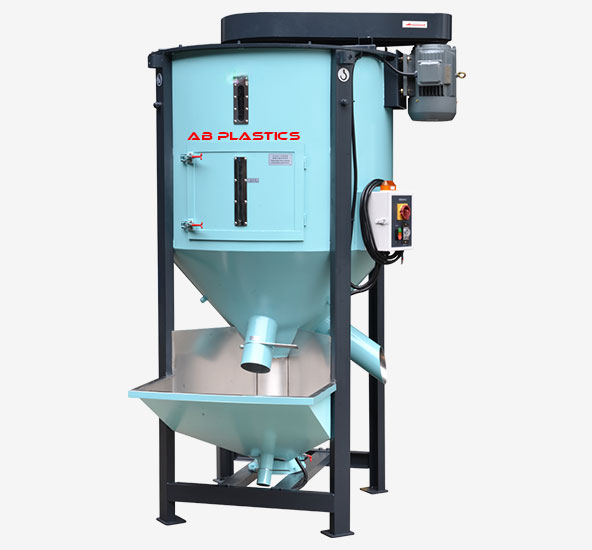

Screw color mixer
Efficient and Uniform Mixing with Compact Design
The Screw Color Mixer has double stainless steel construction and a 3D design for fast and homogeneous mixing. The direct drive motor is highly efficient, and the vertical form saves space and simplifies unloading. Both the stainless steel blades and mixing chamber are removable for fast cleaning. The automatic stop timer (0-30 minutes) and several safety protections supplied make it reliable and safe to operate.
Technical Specifications
| Model | Motor Power (kW) | Capacity (kg) | Power (V) | Mix Type | External Dimensions (L×W×H) | Weight (kg) |
|---|---|---|---|---|---|---|
| SSB-50 | 1.5 | 50 | AC3 50/60HZ | Vane Type | 830×830×1120 | 130 |
| SSB-100 | 3 | 100 | AC3 50/60HZ | Vane Type | 1000×1000×1280 | 190 |
| SSB-150 | 4 | 150 | AC3 50/60HZ | Vane Type | 1130×1130×1380 | 250 |
| SSB-200 | 5.5 | 200 | AC3 50/60HZ | Vane Type | 1200×1200×1500 | 285 |
| SSM-300 | 1.5 | 300 | AC3 50/60HZ | Screw Type | 1310×1360×2100 | 319 |
| SSM-500 | 2.2 | 500 | AC3 50/60HZ | Screw Type | 1450×1450×2260 | 362 |
| SSM-1000 | 5.5 | 1000 | AC3 50/60HZ | Screw Type | 1580×1380×3100 | 447 |
| SSM-1500 | 5.5 | 1500 | AC3 50/60HZ | Screw Type | 1890×1680×3470 | 532 |
| SSM-2000 | 5.5 | 2000 | AC3 50/60HZ | Screw Type | 2000×2000×3500 | 617 |
