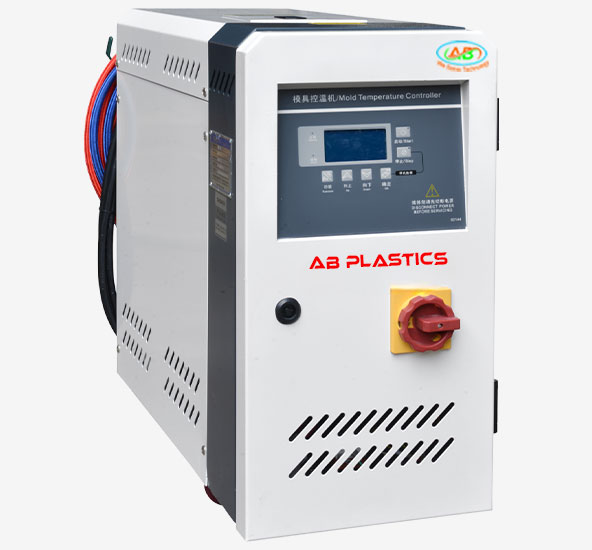

Mould Temperature Controller
Precise Temperature Regulation for Stable Molding Performance
The Mould Temperature Controller uses advanced PID microcomputer control to ensure accurate and stable temperature management during the molding process. It features pump overload protection and low liquid level alarms to enhance system reliability and safety.
Built with CE-certified power switches and phase-reversal alarms, it guarantees safe operation under all conditions. The unit also includes multi-fault indicators, allowing users to quickly identify and resolve issues for smooth, continuous production.
Technical Specifications
| Model | STC-6W | STC-9W | STC-12W | STC-18W | STC-24W | STC-6 | STC-9 | STC-12 | STC-18 | STC-24 |
|---|---|---|---|---|---|---|---|---|---|---|
| Max Temp (°C) | 120 | 120 | 120 | 120 | 120 | 160 | 160 | 160 | 160 | 160 |
| Heat (kW) | 6 | 9 | 12 | 9×2 | 12×2 | 6 | 9 | 12 | 9×2 | 12×2 |
| Pump (kW) | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 0.37 | 0.75 | 1.5 | 1.5 | 2.2 |
| Flux (L/min) | 42 | 56 | 110 | 235 | 315 | 42 | 56 | 110 | 235 | 315 |
| Heating Medium | Water | Oil | ||||||||
| Cooling Mode | Direct Cooling | Indirect Cooling | ||||||||
| Mold Tie (inch) | 3/8"×4×2 | 3/8"×4×2 | 3/8"×6×2 | 3/8"×6×2 | 3/8"×6×2 | 3/8"×4×2 | 3/8"×4×2 | 3/8"×6×2 | 3/8"×6×2 | 3/8"×6×2 |
| L (mm) | 780 | 780 | 780 | 980 | 980 | 780 | 780 | 780 | 980 | 980 |
| L1 (mm) | 660 | 660 | 660 | 830 | 830 | 660 | 660 | 660 | 830 | 830 |
| W (mm) | 300 | 300 | 300 | 420 | 420 | 300 | 300 | 300 | 420 | 420 |
| W1 (mm) | 280 | 280 | 280 | 380 | 380 | 280 | 280 | 280 | 380 | 380 |
| H (mm) | 580 | 580 | 580 | 750 | 750 | 580 | 580 | 580 | 750 | 750 |
| H1 (mm) | 540 | 540 | 540 | 640 | 640 | 540 | 540 | 540 | 640 | 640 |
| Weight (kg) | 54 | 54 | 64 | 76 | 104 | 66 | 69 | 76 | 118 | 120 |
