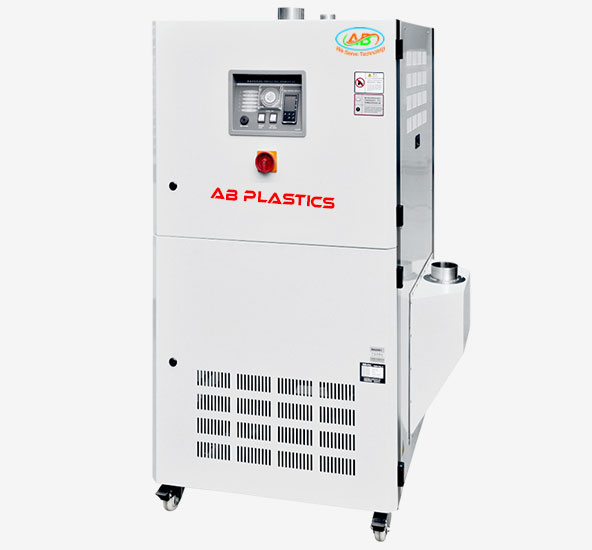

Mold Dehumidifying Dryer
Reliable Moisture Control for Superior Mold Performance
The Mold Dehumidifying Dryer blows low dew point dry air across the mold surface to eliminate condensation and moisture at the mold surface. Specifically using an imported high quality rotating honeycomb dehumidifier, it mutes a dew point of approximately -10°C to keep the mold surface dry, clean, and free from water marks.
This system improves product quality, reduces mold maintenance, and provides a seamless and effective production process in humid working environments.
Technical Specifications
| Model | SMD-500 | SMD-1000 | SMD-1500 | SMD-2000 |
|---|---|---|---|---|
| Dry Blower (m³/hr) | 0.5 | 1 | 1.5 | 2 |
| Power of Dry Blower (kW) | 0.9 | 1.5 | 2.2 | 3 |
| Power of Regenerating Blower (W) | 180 | 180 | 340 | 340 |
| Power of Regenerating Heater (kW) | 7 | 7 | 9 | 9 |
| Pipe Diameter (inch) | 102 | 127 | 152 | 152 |
| L (mm) | 1050 | 1050 | 1170 | 1170 |
| W (mm) | 1000 | 1000 | 1330 | 1330 |
| W1 (mm) | 830 | 830 | 1030 | 1030 |
| H (mm) | 1660 | 1660 | 1865 | 1865 |
| Weight (kg) | 250 | 370 | 420 | 550 |
