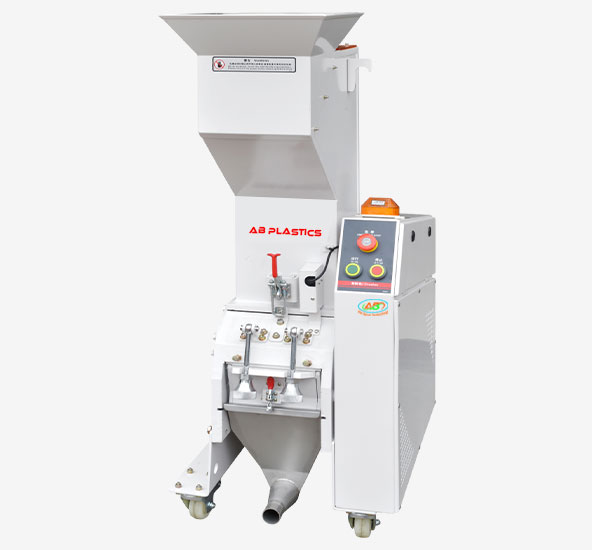

Medium Speed Crusher
Efficient Crushing for Runners and Defective Products
The Middle Speed Crusher Series is designed to work alongside injection molding and extrusion machines, efficiently crushing runners and minor defective products. It features low rotational speed, quiet operation, minimal dust, and easy maintenance.
2B series includes a blower feeding device, while 2C series comes with a proportional valve.
Technical Specifications
| Model | SG-180FET-2B/2C | SG-240FET-2B/2C | SG-300FET-2B/2C | SG-360FET-2B/2C | SG-420FET-2B/2C | SG-2425-2B/2C | SG-2838-2B/2C | SG-3242-2B/2C | SG-3844-2B/2C |
|---|---|---|---|---|---|---|---|---|---|
| Chamber Calibre (mm) | 210×221 | 270×221 | 330×270 | 390×270 | 450×270 | 250×240 | 305×315 | 410×315 | 440×380 |
| Crush Capacity (Kg/H) | 30–50 | 50–80 | 50–100 | 80–130 | 100–150 | 15–20 | 20–25 | 25–30 | 35–40 |
| Rotating/Fixed Blade (Pcs) | 9/2 | 12/2 | 15/2 | 18/2 | 21/2 | / | / | / | / |
| Rotational Speed (rpm) | 280 | 280 | 280 | 280 | 280 | / | / | / | 24 |
| Motor (Kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 1.5 | 2.2 | 2.2 | 3 |
| Blower Power (2B) | 0.55 | / | / | / | / | / | 0.55 | / | / |
| Blower (2C) | / | / | / | / | / | / | / | / | / |
| Diameter of Crushing Rotation | Φ190 | Φ225 | Φ225 | Φ225 | Φ225 | / | / | / | / |
| Diameter of Aperture | Φ6 | Φ6 | Φ6 | Φ6 | Φ6 | / | / | / | / |
| L (mm) | 484 | 539 | 599 | 659 | 719 | 900 | 1100 | 1200 | 1300 |
| W (mm) | 1010 | 1042 | 1109 | 1134 | 1173 | 450 | 500 | 500 | 560 |
| H (mm) | 1283 | 1283 | 1391 | 1432 | 1452 | 1130 | 9200 | 1230 | 1380 |
| Φ(D) | Φ38 | Φ38 | |||||||
| Weight (kg) | 177 | 216 | 256 | 300 | 350 | 230 | 300 | 320 | 490 |
