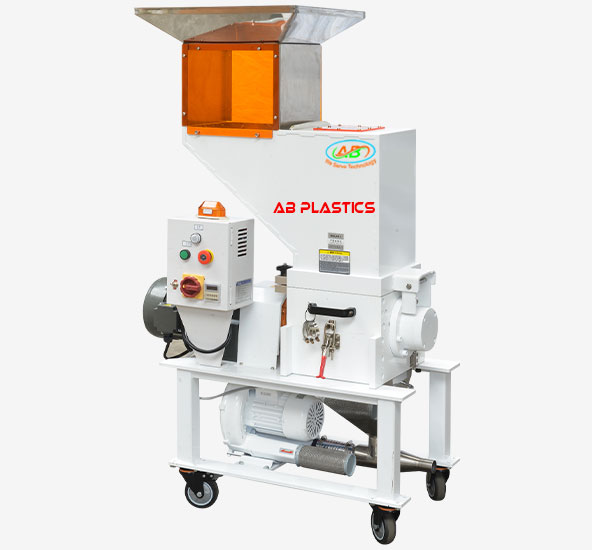

Low Speed Crusher Series
Reliable Crushing with Low Noise and High Safety
The Low Speed Crusher Series is ideal for crushing hard, thick materials and small waste quantities. Its tooth cutter and staggered blade design reduces dust during grinding, while multiple safety protections ensure reliable operation.
Comes with a standard material storage box. Models with loaders or proportional valves are available upon request.
Technical Specifications
| Model | SG-180FET-2B/2C | SG-240FET-2B/2C | SG-300FET-2B/2C | SG-360FET-2B/2C | SG-420FET-2B/2C | SG-2425-2B/2C | SG-2838-2B/2C | SG-3242-2B/2C | SG-3844-2B/2C |
|---|---|---|---|---|---|---|---|---|---|
| Chamber Calibre (mm) | 210x221 | 270x221 | 330x270 | 390x270 | 450x270 | 250x240 | 305x315 | 410x315 | 440x380 |
| Crush Capacity (Kg/H) | 30-50 | 50-80 | 50-100 | 80-130 | 100-150 | 15-20 | 20-25 | 25-30 | 35-40 |
| Rotating/Fixed Blade (Pcs) | 9/2 | 12/2 | 15/2 | 18/2 | 21/2 | / | / | / | / |
| Rotational Speed (rpm) | 280 | 280 | 280 | 280 | 280 | / | / | / | 24 |
| Motor (Kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 1.5 | 2.2 | 2.2 | 3 |
| Blower (2B) | 0.55 | 0.55 | |||||||
| Blower (2C) | / | / | / | / | / | / | / | / | / |
| Diameter of Crushing Rotation | Φ190 | Φ225 | Φ225 | Φ225 | Φ225 | / | / | / | / |
| Diameter of Aperture | Φ6 | Φ6 | Φ6 | Φ6 | Φ6 | / | / | / | / |
| L (mm) | 484 | 539 | 599 | 659 | 719 | 900 | 1100 | 1200 | 1300 |
| W (mm) | 1010 | 1042 | 1109 | 1134 | 1173 | 450 | 500 | 500 | 560 |
| H (mm) | 1283 | 1283 | 1391 | 1432 | 1452 | 1130 | 9200 | 1230 | 1380 |
| Φ (D) | Φ38 | Φ38 | |||||||
| Weight (kg) | 177 | 216 | 256 | 300 | 350 | 230 | 300 | 320 | 490 |
