Efficient Material Drying for Enhanced Molding Performance

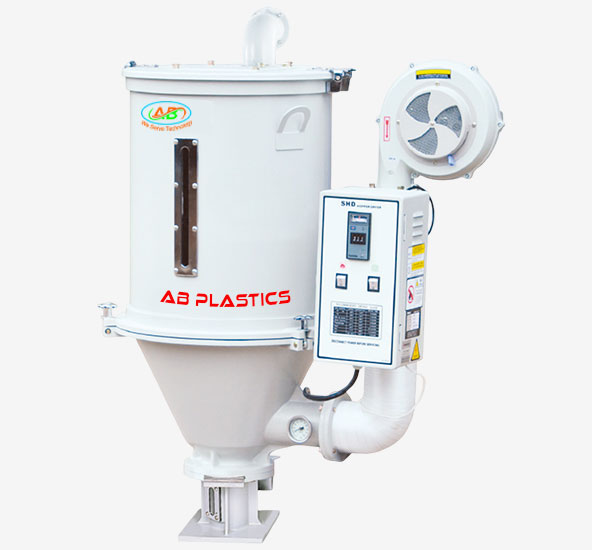

The Hopper Dryer is designed to efficiently remove surface moisture from plastic resins before processing, ensuring optimal molding quality and consistency. Using hot air circulation and uniform temperature control, it prevents material defects like bubbles, poor transparency, or weak bonding.

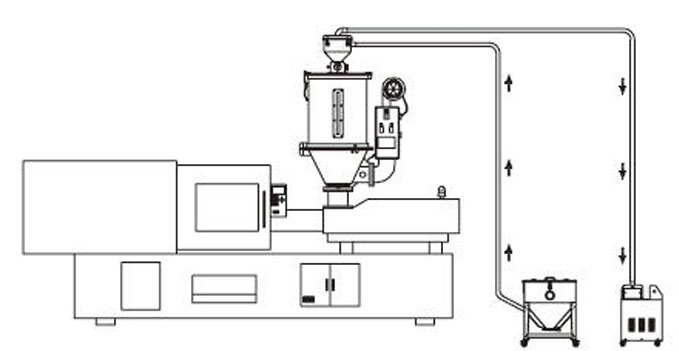

Engineered with energy efficiency and durability in mind, our hopper dryers are suitable for a wide range of thermoplastic materials. Available in various capacities, they are ideal for use with injection molding, extrusion, and blow molding machines.
Technical Specifications

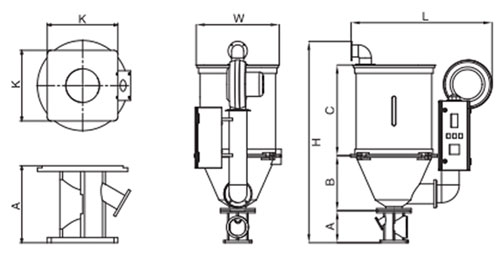

| Model | Capacity (kg) | Heater Power (kW) | Blower Power (W) | L (mm) | W (mm) | H (mm) | B (mm) | C (mm) | K (mm) | A (mm) | Adaptable Injection (g) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHD-15 | 15 | 2.7 | 135 | 660 | 360 | 770 | 215 | 350 | 108 | 107 | 30–60 | 28 |
| SHD-25 | 25 | 3.2 | 120 | 725 | 405 | 970 | 240 | 407 | 150 | 182 | 30–60 | 29 |
| SHD-50 | 50 | 4.2 | 140 | 870 | 490 | 1140 | 317 | 500 | 158 | 184 | 125–500 | 35 |
| SHD-75 | 75 | 5 | 140 | 930 | 550 | 1250 | 313 | 610 | 158 | 184 | 500–1000 | 43 |
| SHD-100 | 100 | 7 | 180 | 1070 | 610 | 1360 | 363 | 670 | 178 | 186 | 1000–1500 | 62 |
| SHD-150 | 150 | 9 | 180 | 1070 | 650 | 1560 | 352 | 820 | 178 | 186 | 1500–2000 | 66 |
| SHD-200 | 200 | 12 | 340 | 1240 | 770 | 1660 | 415 | 820 | 230 | 218 | 2000–2500 | 96 |
| SHD-250 | 250 | 14.5 | 340 | 1240 | 770 | 1820 | 415 | 1000 | 230 | 218 | 2500–3000 | 97 |
| SHD-300 | 300 | 14.5 | 340 | 1335 | 870 | 1870 | 460 | 1000 | 230 | 219 | 3000–4000 | 107 |
| SHD-400 | 400 | 18 | 380 | 1360 | 900 | 2040 | 508 | 1080 | 320 | 266 | 4000–6000 | 147 |
| SHD-500 | 500 | 18 | 380 | 1360 | 900 | 2240 | 508 | 1080 | 320 | 266 | 4000–6000 | 150 |
| SHD-600 | 600 | 24 | 1000 | 1570 | 1060 | 2300 | 570 | 1220 | 320 | 266 | 6000–8000 | 180 |
| SHD-800 | 800 | 30 | 2200 | 1800 | 1200 | 2400 | 663 | 1220 | 280 | 272 | 8000–10000 | 230 |
| SHD-1000 | 1000 | 37 | 2200 | 1800 | 1200 | 2700 | 663 | 1520 | 280 | 272 | 8000–12000 | 270 |
