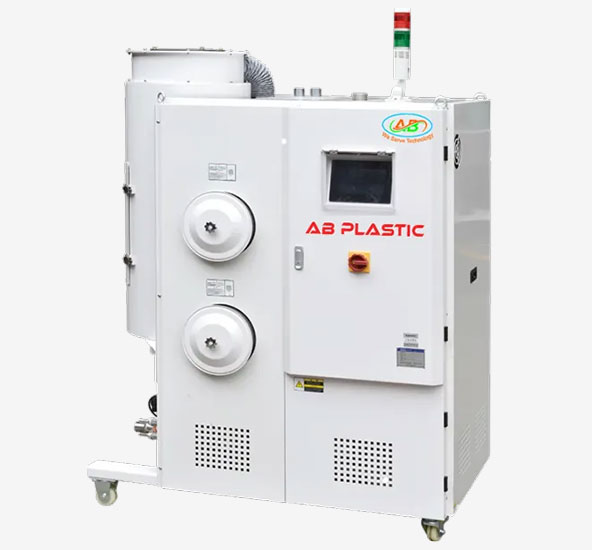

Honeycomb Dehumidifying Dryer
Three-in-One Dehumidifying, Drying & Conveying System
This integrated system combines Drying, Dehumidifying, and Conveying in one compact unit for efficient and reliable material handling. Designed with a fully sealed system, it prevents moisture reabsorption and maintains a stable low dew point.
It can deliver materials to up to three hoppers as per customer requirements. A shut-off valve ensures smooth conveying without residue, while the double-layer insulated barrel minimizes heat loss. The high-efficiency heat dissipater provides low-temperature, low-dew-point air for consistent drying performance.
Technical Specifications
| Model | Capacity (L) | Dry Blower (m³/hr) | Power of Heat Heater (kW) | Power of Dry Blower (kW) | Power of Regenerating Blower (kW) | Power of Air Pump (kW) | Power of Regenerating Heater (kW) | Pipe Diameter (mm) | L (mm) | W (mm) | H (mm) | H1 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLHJ-40L-40 | 40 | 40 | 3.2 | 0.37 | 0.75 | 0.75 | 3.2 | 38 | 1100 | 750 | 1410 | 425 | 235 |
| SLHJ-80L-40 | 80 | 80 | 4.2 | 0.55 | 1.1 | 1.1 | 3.2 | 38 | 1160 | 750 | 1550 | 425 | 248 |
| SLHJ-80L-80 | 80 | 80 | 4.2 | 0.55 | 1.1 | 1.1 | 3.2 | 38 | 1160 | 750 | 1550 | 425 | 267 |
| SLHJ-120L-100 | 120 | 120 | 5 | 0.75 | 1.1 | 1.1 | 3.2 | 38 | 1265 | 850 | 1680 | 375 | 324 |
| SLHJ-160L-150 | 160 | 160 | 7 | 1.1 | 1.1 | 1.1 | 3.2 | 38 | 1310 | 855 | 1730 | 375 | 354 |
| SLHJ-230L-150 | 230 | 230 | 9 | 1.5 | 1.5 | 1.5 | 4.2 | 38 | 1500 | 900 | 2030 | 460 | 380 |
| SLHJ-300L-150 | 300 | 300 | 12 | 1.5 | 1.5 | 1.5 | 4.2 | 51 | 1520 | 900 | 2080 | 460 | 414 |
| SLHJ-380L-200 | 380 | 380 | 14.5 | 2.2 | 1.5 | 1.5 | 7 | 51 | 1400 | 950 | 2080 | 405 | 450 |
| SLH-460L-300 | 460 | 300 | 14.5 | 3 | 0.75 | 1.5 | 9 | 51 | 2060 | 980 | 2200 | 970 | 510 |
| SLH-600L-400 | 600 | 400 | 18 | 4 | 0.75 | 1.5 | 12 | 51 | 2130 | 1090 | 2500 | 1230 | 665 |
| SLH-800L-500 | 800 | 500 | 24 | 5.5 | 0.75 | 2.2 | 14.5 | 51 | 2400 | 1295 | 2590 | 1300 | 820 |
| SLH-1000L-700 | 1000 | 700 | 24 | 7.5 | 0.75 | 2.2 | 14.5 | 51 | 2490 | 1295 | 2850 | 1330 | 905 |
| SLH-1200L-700 | 1200 | 1000 | 36 | 7.5 | 1.1 | 2.2 | 7 | 51 | 2600 | 1460 | 3100 | 1460 | 964 |
| SLH-1500L-1000 | 1500 | 1000 | 36 | 5.5×2 | 1.1 | 2.2 | 7×2 | 51 | 3400 | 1830 | 3520 | 1850 | 1410 |
| SLH-1800L-1000 | 1800 | 1500 | 36 | 5.5×2 | 1.1 | 2.2 | 9×2 | 51 | 3430 | 1900 | 4150 | 1870 | 1550 |
| SLH-2000L-1500 | 2000 | 1500 | 40 | 5.5×2 | 1.1 | 2.2 | 9×2 | 51 | 3450 | 1900 | 4150 | 1870 | 1780 |
