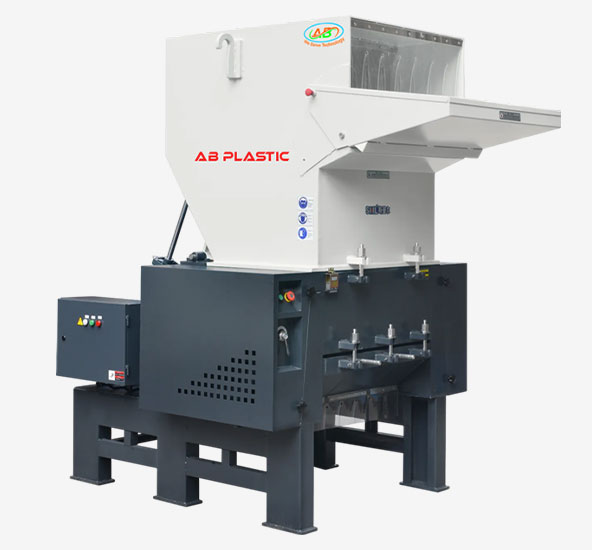

High Speed Crusher
Centralized Pulverizing for All Plastic Types
The High-Speed Crusher is ideal for centralizing all types of plastic waste, such as scrap from injection molding, blow molding and extrusion processes. It also takes up very little space and is simple to implement, clean and maintain, thus enhancing productivity.
Crushing capacity will vary depending on the diameter of the screen mesh.
Technical Specifications
| Model | SG-230F | SG-300F | SG-400F | SG-500F | SG-600F | SG-800F | SG-1000F | SG-1200F | SG-400JF | SG-500JF | SG-600JF | SG-800JF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chamber Calibre (mm) | 230×260 | 310×260 | 402×310 | 510×390 | 600×402 | 810×540 | 1010×660 | 1210×820 | 402×310 | 510×390 | 600×402 | 810×540 |
| Crush Capacity (Kg/H) | 100–200 | 200–300 | 350–400 | 350–500 | 450–600 | 600–800 | 700–1000 | 800–1200 | 350–400 | 350–500 | 450–600 | 600–800 |
| Rotating Blade (Pcs) | 3×2 | 3×3 | 3×4 | 3×5 | 3×6 | 3×4 | 3×5 | 3×6 | 3×4 | 3×5 | 3×6 | 3×4 |
| Fixed Blade (Pcs) | 2×1 | 2×1 | 2×1 | 2×2 | 2×2 | 2×2 | 2×3 | 2×3 | 2×1 | 2×2 | 2×2 | 2×2 |
| Motor (Kw) | 4 | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 45 | 7.5 | 11 | 15 | 22 |
| Diameter of Crushing Rotation | Φ185 | Φ210 | Φ220 | Φ290 | Φ310 | Φ425 | Φ450 | Φ640 | Φ220 | Φ290 | Φ310 | Φ425 |
| Diameter of Aperture | Φ8 | Φ8 | Φ10 | Φ10 | Φ10 | Φ12 | Φ12 | Φ10 | Φ10 | Φ10 | Φ10 | Φ10 |
| L (mm) | 650 | 736 | 831 | 930 | 1080 | 1390 | 1652 | 2070 | 820 | 930 | 1080 | 1460 |
| W (mm) | 934 | 1097 | 1242 | 1426 | 1554 | 2200 | 2472 | 2915 | 1380 | 1560 | 1670 | 2300 |
| H (mm) | 1000 | 1135 | 1290 | 1465 | 1662 | 2172 | 2540 | 3340 | 1420 | 1600 | 1800 | 2230 |
| Crushing Height (B) | 530 | 610 | 710 | 850 | 1092 | 1176 | 1525 | 790 | 860 | 990 | 1150 | 1150 |
| Feeding Height (A) | 900 | 1020 | 1130 | 1300 | 1480 | 1838 | 2120 | 2560 | 1270 | 1430 | 1620 | 1890 |
| Weight (kg) | 245.5 | 323.5 | 436 | 692 | 873 | 2192 | 2928 | 5760 | 540 | 810 | 1020 | 2460 |
