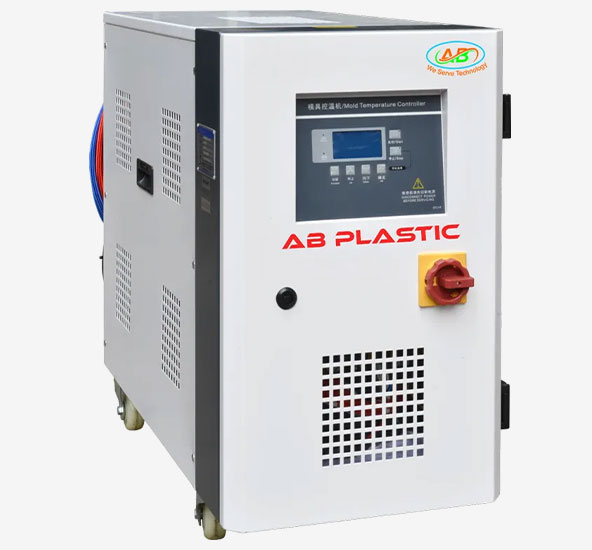

High Mould Temperature Controller
High Mould Temperature Controller
High Mould Temperature Controller

Precise Temperature Regulation for Stable Molding Performance

The High Mould Temperature Controller uses advanced PID microcomputer control to ensure accurate and stable temperature management during the molding process. It features pump overload protection and low liquid level alarms to enhance system reliability and safety.

Built with CE-certified power switches and phase-reversal alarms, it guarantees safe operation under all conditions. The unit also includes multi-fault indicators, allowing users to quickly identify and resolve issues for smooth, continuous production.

Technical Specifications

Model STC-6W-2D STC-9W-2D STC-12W-2D STC-6-2D STC-9-2D STC-12-2D
Max Temp (°C)120120120160160160
Heat (kW)6×29×212×26×29×212×2
Pump (kW)0.37×20.75×21.5×20.37×20.75×21.5×2
Flux (L/min)42×256×2110×242×256×2110×2
Heating MediumWaterOil
Cooling ModeDirect CoolingIndirect Cooling
Mold Tie (Inch)3/8"×4×43/8"×4×43/8"×4×43/8"×4×43/8"×4×43/8"×4×4
L (mm)980980980980980980
L1 (mm)830830830830830830
W (mm)420420420420420420
W1 (mm)400400400400400400
H (mm)750750750750750750
H1 (mm)640640640640640640
Weight (kg)94100115112118130
+
